Valve / adapter for mounting TPMS pressure sensors
Twisted aluminum valve with an adapter that allows you to mount a TPMS pressure sensor with its valve on a rim, the profile of which prevents the sensor from being used on a standard valve. The valve / adapter fits all types of aluminum rims with a valve hole of 11.3 mm in diameter.
In order to install the sensor, you also need a valve corresponding to the sensor. Installation involves placing the valve stem with the sensor mounted on it (it can also be a sensor with an integrated valve) in the adapter clamp.

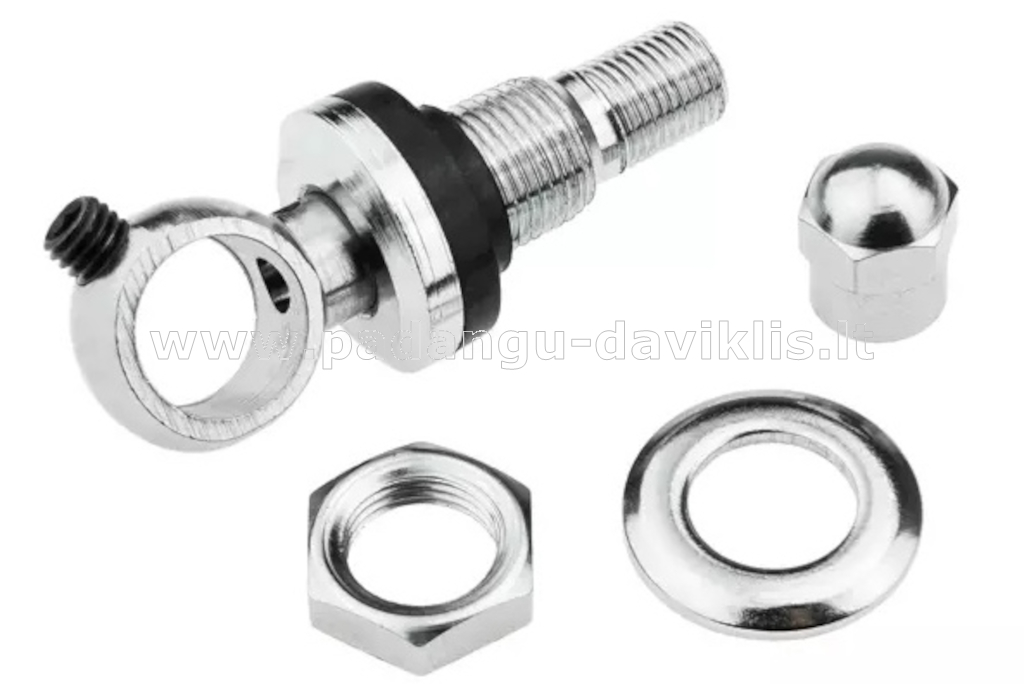

Components of the valve / adapter
Metal valve stem with a clamp for the sensor,
rubber gasket,
metal nut securing the valve to the rim
metal washer,
metal cap with gasket,
spring insert,
sensor mounting screw.
Dimensions of the valve / adapter
total height: 50 mm,
height from the rim: 24 mm,
for a hole in the rim with a diameter of 11.3 mm (+0.4 mm),
inner diameter of the clamp (for fixing the valve with the sensor): 11.2 mm

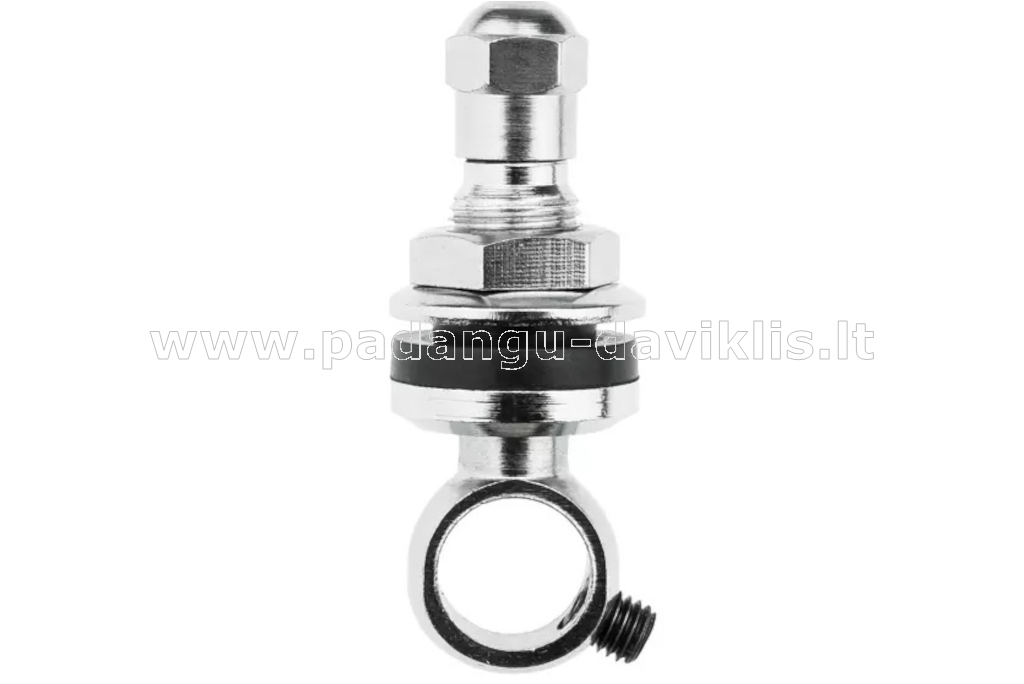

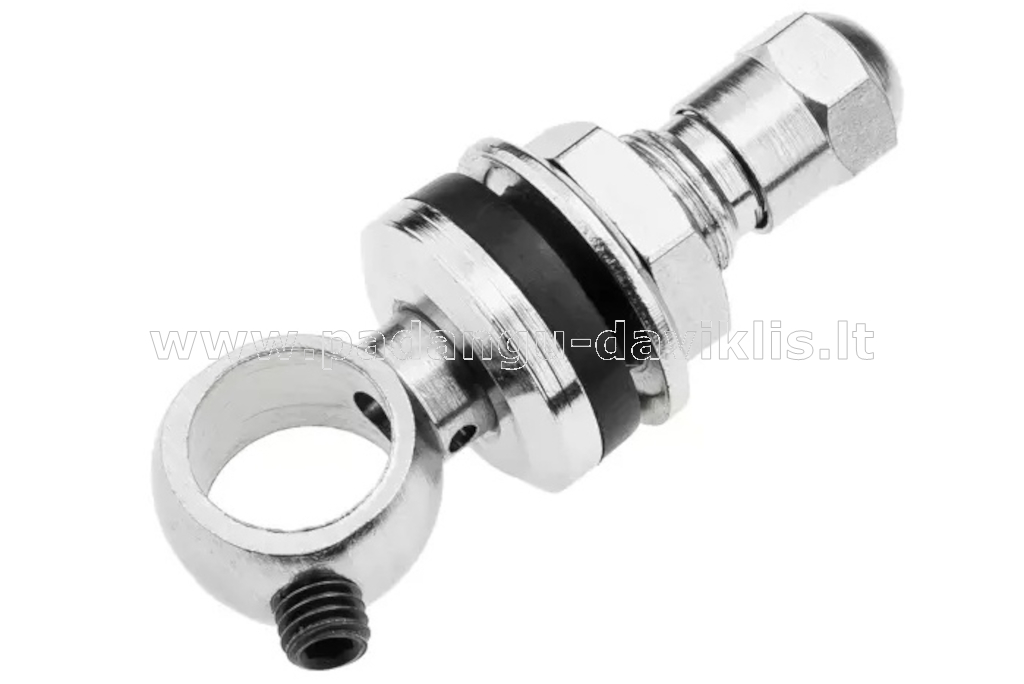

Note - the TPMS sensor visible in the photos (along with the valve) is not part of the set.
